Fluid Coupling Retrofit Reduces Downtime in Indonesian Coal Mine
2026-05-04 14:40Fluid Coupling Retrofit Reduces Downtime in Indonesian Coal Mine
A major Indonesian coal mine faced persistent operational headaches on its main overland belt conveyor. Frequent motor overload trips, belt slippage, and unplanned stops were costing the mine millions in lost production. After retrofitting with a Dalian Mairuisheng YOX series Fluid coupling, the mine achieved nine months of continuous, trouble-free operation. This case study details how the right Hydrodynamic coupling solved the mine’s reliability issues and why a Torque Converter-style power transmission device is essential for heavy-duty conveyors.
The Challenge: Frequent Overload Trips and Belt Damage
The mine’s 1.2 km overland conveyor transported 1,200 tonnes of coal per hour from the pit to the processing plant. The drive system consisted of a 200 kW motor, a gearbox, and an old direct-start Coupling. During every start-up, the motor drew locked-rotor currents of nearly 1,600 A, causing voltage dips that affected other equipment. Worse, the sudden mechanical shock caused repeated belt splice failures, with the conveyor stopping 5–6 times per month for repairs. Each stop resulted in 4–6 hours of lost production, equivalent to nearly 6,000 tonnes of coal. The mine’s maintenance team had already replaced the belt splices twice in one year, and the gearbox showed signs of tooth wear.

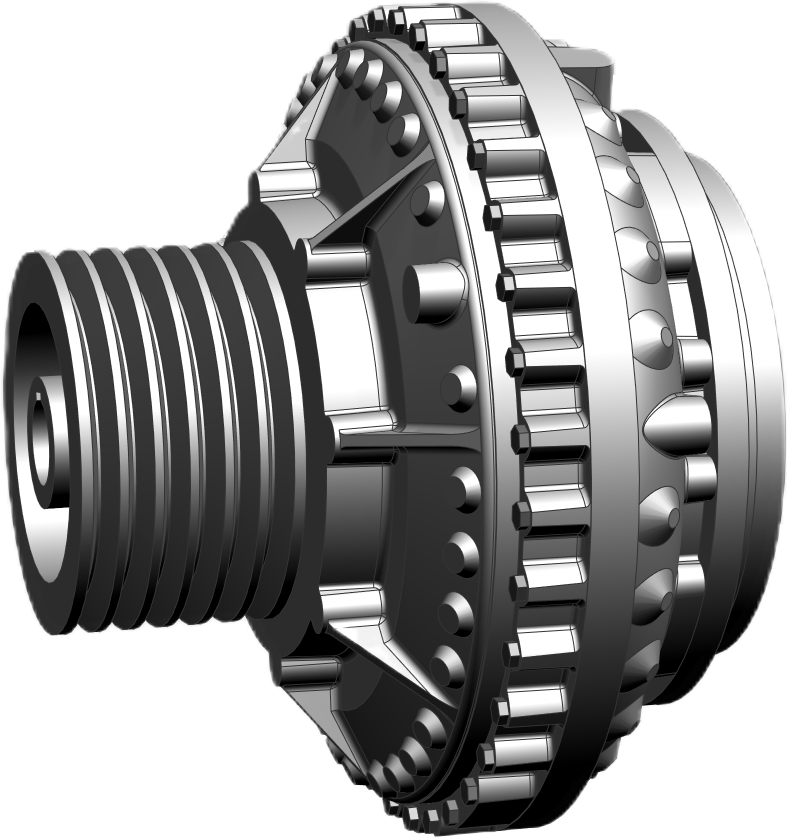

After an initial consultation, Dalian Mairuisheng engineers recommended replacing the existing rigid Coupling with a YOX‑650 constant‑fill Fluid coupling. This Hydrodynamic coupling was specifically selected for its soft-start capability and torque-limiting characteristics, which would protect both the belt and the gearbox from high transient loads.
Solution: Installing a Fluid Coupling for Soft Start & Overload Protection
The retrofit was completed during a scheduled weekend shutdown. The YOX‑650 Fluid coupling was a direct drop‑in replacement, requiring no modifications to the motor base, gearbox input shaft, or coupling guards. The unit was filled with the recommended amount of hydraulic fluid and aligned within standard tolerances. Upon restart, the mine immediately observed the difference: the Fluid coupling enabled the motor to accelerate to nearly full speed before gradually applying torque to the conveyor belt. The starting current peaked at just 1,040 A – a 35% reduction – and the belt accelerated smoothly without any jerking or vibration.
Beyond the soft start, the Hydrodynamic coupling provided inherent overload protection. During normal operation, if a temporary material surge caused torque to spike, the Fluid coupling would slip, limiting the torque transmitted to the belt and gearbox. This eliminated the previous problem of instantaneous overload trips that required manual reset.
Measurable Results: 9 Months Zero Downtime, Extended Belt Life
After the retrofit, the mine tracked key performance indicators over a nine-month period. The results exceeded expectations:
Zero conveyor downtime related to the drive or coupling – the Fluid coupling performed flawlessly for 9 consecutive months.
Starting current reduced by 35% – from 1,600 A to 1,040 A, reducing stress on the electrical network.
Belt splice life extended by 2x – the original splices that failed every 3–4 months remained intact for over 8 months.
Gearbox vibration levels dropped by 40%, indicating reduced torsional excitation.
Annual maintenance savings estimated at $45,000 from fewer belt repairs and reduced electrical consumption.
The mine’s maintenance superintendent commented: “The Fluid coupling transformed our conveyor. We used to dread every start-up – now it’s so smooth we hardly notice. And the overload protection means our operators don’t have to worry about jamming the belt. This Hydrodynamic coupling paid for itself in less than three months.”
• Peak starting current: 1,600 A → 1,040 A (-35%)
• Belt splice failures: 5–6 per year → 0 per year
• Unplanned stops: 50+ per year → 2 (unrelated to drive)
• Gearbox oil temperature: 82°C → 67°C
Why a Torque Converter-Style Fluid Coupling Works Best for Conveyors
In heavy mining conveyors, the ideal power transmission device must perform three tasks: provide a long, soft start (often 20–45 seconds), limit torque under overload conditions, and dampen vibrations. A direct‑online starter cannot do any of these. A variable frequency drive (VFD) can, but at a much higher initial and maintenance cost. A Fluid coupling – specifically a constant‑fill or delayed‑fill Hydrodynamic coupling – offers the best cost-to-performance ratio. The hydrodynamic principle is similar to a Torque Converter in automotive transmissions: the pump wheel accelerates fluid, which drives the turbine. By adjusting the fill level or adding a delayed filling chamber, the torque‑speed curve can be shaped precisely for long conveyors, ensuring that the motor never operates in an unstable region. The YOX series used in this case study is a prime example of a rugged, maintenance‑friendly Fluid coupling that delivers all these benefits at a fraction of the cost of electronic soft starters.
Conclusion: A Proven Solution for Coal Mines Worldwide
The Indonesian coal mine’s success story is not unique. Dalian Mairuisheng has supplied thousands of Fluid couplings to mining operations across Southeast Asia, Central Asia, Africa, and South America. Whether you need to replace an outdated rigid Coupling, reduce belt wear, or add overload protection to a new conveyor, our YOX series Hydrodynamic couplings are a proven, cost‑effective solution. Our engineers provide free pre‑sale load analysis and offer a one‑year warranty on every unit. Contact us today to discuss your conveyor drive challenges.
