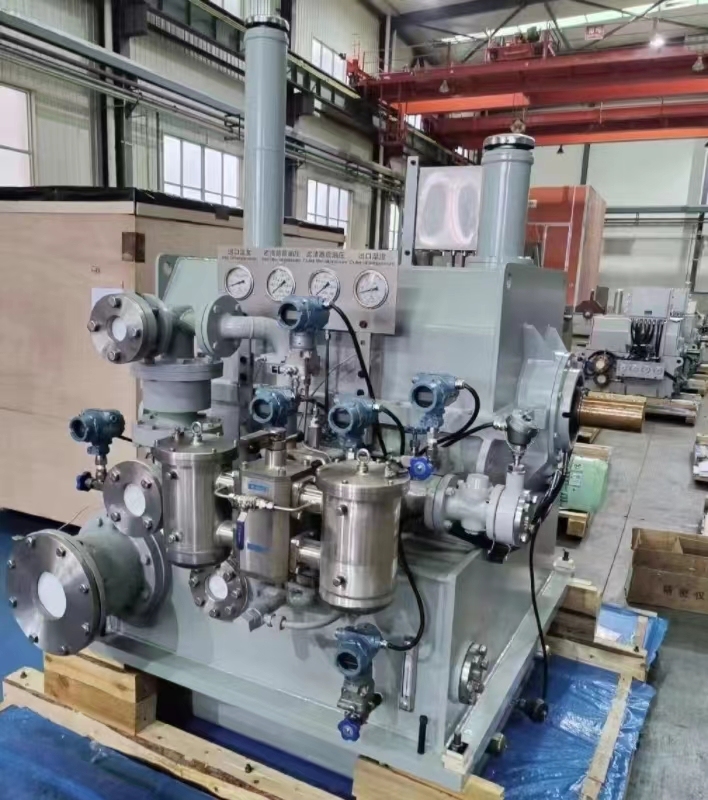

Variable Speed Hydrodynamic coupling
1. The variable speed hydrodynamic coupling transmits power through liquid, reduces mechanical friction loss and improves energy efficiency.
2. The variable speed hydrodynamic coupling effectively absorbs vibration and impact, reduces wear of mechanical systems and extends equipment life.
3. The variable speed hydrodynamic coupling can automatically adjust the speed according to load changes to achieve smooth starting and braking.
4. The variable speed hydrodynamic coupling has a compact structure, occupies little space, and is easy to install and maintain.
5. The variable speed hydrodynamic coupling is made of high-quality materials and can adapt to high temperatures and harsh working conditions.
- Information
Variable Speed Fluid Coupling
Stepless Speed Regulation · 15‑35% Energy Saving · No Harmonics
A Variable Speed Fluid Coupling (also called a scoop‑tube coupling or hydraulic speed regulator) is a mechanical device that varies the output speed of a constant‑speed motor by adjusting the oil fill level in the working chamber. Unlike a constant‑fill fluid coupling (which only provides soft start and torque limitation), the variable speed design allows the operator to dial any speed from about 30% to 97% of motor speed. This makes it ideal for centrifugal pumps, fans, and blowers where flow control is needed, but a VFD would be too sensitive to dust, heat, or harmonics. The result: significant energy savings, smooth acceleration, and maintenance‑free operation in harsh industrial environments.
✔ What Makes a Variable Speed Coupling Different
- Adjust output speed without a VFD – No harmonics, no electrical noise, no special cooling for electronics. Works reliably in dusty, hot, or explosive areas.
- Energy saving by affinity law – For a pump or fan, reducing speed by 20% cuts power consumption by nearly 50%. A variable speed coupling delivers these savings without the high cost of a VFD.
- Smooth, stepless control – The scoop tube or sliding core provides infinite speed resolution from minimum to maximum.
- Soft start and overload protection built in – Even when set to full speed, the coupling still provides shock‑free acceleration and torque limiting.
- Low maintenance – No brushes, no power modules, no software updates. Only periodic oil changes and seal checks.
? Technical Specifications
| Brand | Merisen (Dalian Mairuisheng) | |||
|---|---|---|---|---|
| Product Origin | China | |||
| Supply Capacity | 2,500 units/year (scalable) | |||
| Control Method | Scoop tube or sliding core – manual or electric actuator | Power Range | 11 kW – 1,000 kW (larger on request) | |
| Speed Range | 30% – 97% of motor speed (stepless) | |||
| Efficiency at Full Load | >95% (slip 2‑5%) | |||
| Cooling | Internal oil circulation + optional external oil cooler | |||
| Certification | ISO9001:2015 | |||
| Warranty | 1–2 years (replacement and repair included) | |||
| Export Destinations | Russia, Belarus, Kazakhstan, UAE, Romania, and more |
※ For speed‑torque curves and selection software, contact engineering.
⚙️ Working Principle – How Speed Is Regulated
In a variable speed fluid coupling, the working chamber is not fully filled. A scoop tube (or a movable core) continuously extracts oil from the chamber and returns it to an external reservoir. By adjusting the scoop tube position, the steady‑state oil level inside the coupling changes. When the oil level is low, slip is high and output speed is low; when the chamber is nearly full, output speed approaches motor speed. Because the scoop tube action is smooth and continuous, the output speed can be set to any value within the range. The coupling remains filled with the correct amount of oil for the chosen speed, and the excess oil is cooled in the external circuit. This design is extremely robust – there is no friction engagement or mechanical wear of speed‑control elements.
? Best Applications for Variable Speed Fluid Couplings
- Centrifugal pumps (irrigation, water supply, slurry) – Match flow to demand, eliminate valve losses, save energy.
- ID fans, FD fans, and induced draft fans – Control furnace draft or ventilation without damper pressure drop.
- Boiler feed pumps – Vary speed to maintain boiler level, reducing recirculation losses.
- Mixers and agitators – Adjust speed for different product viscosities or batch phases.
- Conveyors with variable load – Reduce belt speed when feed is low, saving power and belt wear.
? Customization & Support – Made for Your Process
? Actuator options
Manual lever, electric linear actuator, or pneumatic positioner – we integrate any standard control signal (4‑20 mA, 0‑10 V).
⚙️ Cooling system design
For continuous low‑speed operation, we add external oil coolers (water or air) to maintain oil temperature.
? High‑speed or high‑power
Balanced rotors for up to 3000 rpm, and custom frames for >1 MW.
? Remote speed indication
Built‑in speed sensor and 4‑20 mA output for PLC integration.
With over 22 years of application engineering, we do not just sell a “black box”. We analyze your load profile (pump curve, fan curve, required turndown ratio) and recommend the exact coupling size, scoop tube design, and cooling method. All units are factory‑tested for speed linearity and thermal stability. We offer a 1‑2 year warranty covering all components, including the scoop tube and actuator.
? Why Choose Our Variable Speed Couplings
- Proven energy savings – Typical payback period 6–18 months for pump/fan applications.
- Long service life – Many units still running after 15‑20 years with only oil changes.
- No harmonic filters or power factor correction needed – Input power quality remains excellent.
- Global spares support – We stock oil seals, bearings, and scoop tubes for all models.
❓ FAQ – Variable Speed vs. Constant Fill
? Production lead time?
15‑35 working days, depending on actuator and cooling options.
? What’s the difference between your variable speed coupling and a VFD?
A VFD changes motor speed electrically, which can be very efficient but sensitive to heat/dust/harmonics. A variable speed fluid coupling keeps the motor at constant speed and varies output hydrodynamically – it is virtually immune to dirty or hot environments, and generates no EMI.
? Can I use it for constant torque loads (e.g., conveyors)?
Yes, but the energy saving is less than for pumps/fans. It still provides soft start and overload protection. For conveyors, a constant‑fill coupling is usually more cost‑effective.
? What about export packaging?
ISPM15 certified fumigation‑free wooden crates.
? Payment terms?
30% T/T advance, balance 70% against BL copy. LC also accepted.
? Request a Free Energy Saving Analysis
Send us your motor power, pump/fan curve (or flow & pressure data), and operating hours. We will calculate the payback period and recommend a variable speed fluid coupling.
